High Voltage Short Pulse Generator
AET, Inc.

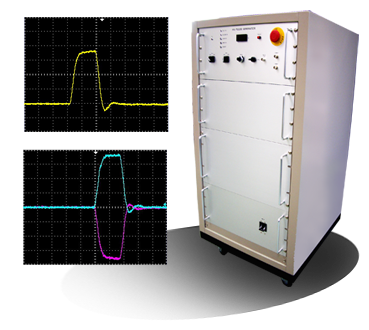

| The high voltage short pulse generator, developed by AET, can be used for applications such as X-ray sources and electric-discharge generators. |  |
Features
- High-speed, high repetition rate pulse generator, employing a thyratron or solid-state switch.
- The neutral grounding method is used, which is rare for a pulse generator.
Applications
- Charged particle (such as electron, ion) accelerator power source
- Non-destructive inspection, X-ray CT, security, X-ray cancer treatment equipment
- Electron tube driver
- Accelerator driver
- Plasma generator power source
- Electrical discharge experiment
- Applied physics⁄chemistry research
The specifications below are just examples. Specifications can be customized to meet your needs, so please feel free to contact us.
Neutral Grounding Type Pulse Generator
Specifications
| Output |
Pulse Voltage: ±75 kV, max (continuous, variable)
Pulse Current 2A, max (at 150kV)
Output Voltage: 150kV, max
|
| Pulse Width | approx.3μs |
| Rise Time | approx.1μs |
| Repetition Rate | 100Hz, max |
| Average Output Power | 150W |
| Output Energy | 1.5J |
| Size(mm) | 570(W) × 1073(H) × 630(D) |
| Input | 200V 1Φ (50⁄60Hz) |
| Cooling | Air cooling |
| Trigger Signal | Internal or external |
| Switching device | MOSFET |
| Note | Emergency stop button |
High Voltage Short Pulse Power Supply
Specifications
| Output |
Voltage 3kV - 60kV |
| Pulse Width | approx.250ns |
| Repetition Rate | 400Hz |
| Size(mm) | 570(W) × 1073(H) × 630(D) |
| Input | 200V (50⁄60Hz) |
| Cooling | Air cooling |
| Trigger Signal | Internal or external |
| Switching device | Thyratron |
| Note | Emergency stop button |
Specifications can be customized to meet your needs so please feel free to contact us.
High Voltage Pulse Power Supply
Specifications
| Output | Voltage 10kV - 60kV |
| Pulse Width | approx.100ns |
| Repetition Rate | 20Hz |
| Size(mm) | 570(W) × 770(H) × 650(D) |
| Input | 100V (50/60Hz) |
| Cooling | Air cooling |
| Trigger Signal | Internal or external |
| Switching device | Thyratron |
| Note | Emergency stop button |
Specifications can be customized to meet your needs so please feel free to contact us.
