Microwave High Power Sources
| C-Band (4GHz - 8GHz) |
| Frequency |
Maximum Output |
Power Source |
Isolator |
Pulse Control |
Connection |
Cooling |
Remarks |
| 5.85 - 6.42GHz |
750W |
TWT |
× |
Ο |
N Type |
Forced-Air Cooling |
Amplifier |
| 5.8GHz |
750W new |
Magnetron |
Ο |
× |
WR159 |
Water-Cooling |
P⁄S·M⁄H Partition Type |
| X-Band (8GHz - 12GHz) |
| Frequency |
Maximum Output |
Power Source |
Isolator |
Pulse Control |
Connection |
Cooling |
Remarks |
| 7.9 - 8.4GHz |
750W |
TWT |
× |
Ο |
N Type |
Forced-Air Cooling |
Amplifier |
| K-Band (12GHz - 40GHz) |
| Frequency |
Maximum Output |
Power Source |
Isolator |
Pulse Control |
Connection |
Cooling |
Remarks |
| 14 - 14.5GHz |
750W |
TWT |
× |
Ο |
SMA Type |
Forced-Air Cooling |
Amplifier |
| 27.5 - 30GHz |
150W |
K Type |
C-Band (4GHz - 8GHz)
Specifications
| Frequency Band |
C-band |
X-band |
Ku-band |
Ka-band |
| Bandwidth (GHz) |
5.85 - 6.425 |
7.9 - 8.4 |
14.0 - 14.5 |
27.5 - 30.0 |
| Power Amplifier Output (W) |
750 and above |
750 and above |
750 and above |
150 |
| Gain (dB) |
70 and above |
70 and above |
70 and above |
65 and above |
| Input (VAC) |
200 |
200 |
200 |
100 D 200 |
| Input Power (kVA) |
2.5 |
2.5 |
2.5 |
0.85 |

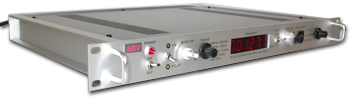

Microwave Variable Pulse Generator |
+ |
Solid-state Signal Generator |
+ |

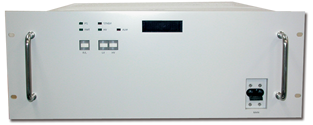

TWT Amplifier
|
Microwave Generator 5.8GHz 750W
Features
- Most suitable for plasma
- Low EMI
- Light weight and small size
Specifications
| Microwave Power Source |
750W |
| Model |
MG0750D |
| Frequency |
5.8GHz |
| Variable Output |
10-100% variable adjusted. |
| Power Source |
Magnetron |
| Connection |
WR159 |
| Pulse Control |
None |
| Isolator |
Yes |
| Power Source |
1-phase 230V/50Hz/13A |
| Cooling |
Water |
Note: E/H tuner is optional.
AET, Inc. is the MUEGGE's distributor in Japan.
* MUEGGE Electronic GmbH
http://www.muegge.de
X-Band (8GHz - 12GHz)
C-Band: Refer To TWT Amplifier
K-Band (12GHz - 40GHz)
C-Band: Refer To TWT Amplifier
