Probe Amplifiers

The Probe Amplifiers developed by AET are the preamplifiers for the magnetic field measurement.

AEWA001 (Freq:10MHz-20GHz) AEMA001 (Freq:10MHz-6GHz) AELA001 (Freq:100kHz-1GHz)
・High-gain
・Ultra-wideband
・High-gain
・Ultra-low noise
・High-gain
・Ultra-low noise

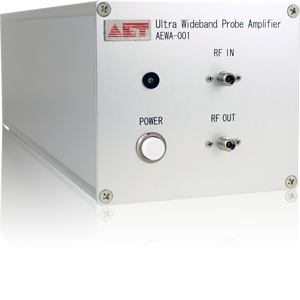

AEWA001

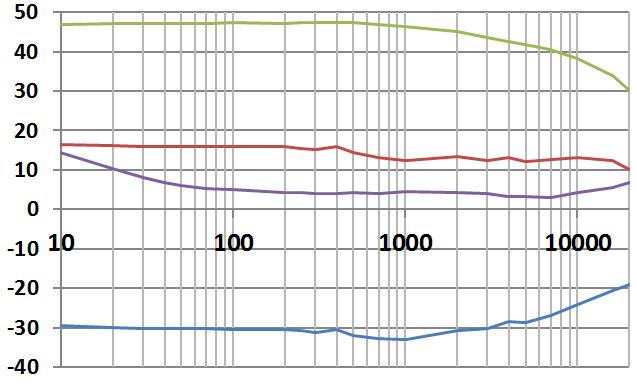

Typical performance at 25℃
1dB comp.(dBm)
Gain(dB)
Max. output power(dBm)
NF(dB)
Specifications
Frequency 10MHz - 20GHz Noise figure
10MHz - 250MHz: ≤ 15.0dB
250MHz - 13GHz: ≤ 5.0dB
13GHz - 20GHz: ≤ 7.5dB
Gain
10MHz - 6GHz: ≥ 40dB
6GHz - 16GHz: ≥ 30dB
16GHz - 20GHz: ≥ 25dB
1dB compression
10MHz - 6GHz: ≤ -24dBm
6GHz - 16GHz: ≤ -18dBm
16GHz - 20GHz: ≤ -17dBm
Max. output power
10MHz - 6GHz: ≥ 12dBm
6GHz - 16GHz: ≥ 10dBm
16GHz - 20GHz: ≥ 8dBm
SWR
10MHz - 10GHz: ≤ 2
10GHz - 20GHz: ≤ 4
Input level+18dBm (max) ImpedanceK Female 50Ω
Power supply12V DC 330mA (16.5V in max.) DimensionsW100mm × D300mm × H90mm
WeightApprox. 1kg Accessories Calibration data, AC adapter
Recommended probes ALMP001, AEMP002, CP-2S, MP-10LA
*Please see the probe specifications for details.

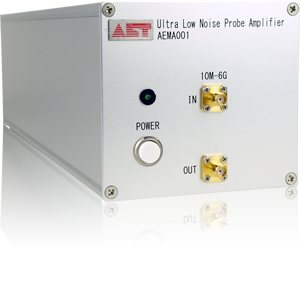

AEMA001

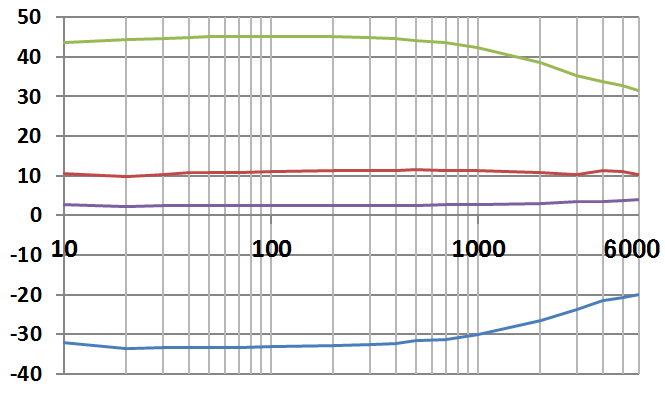

Typical performance at 25℃
1dB comp.(dBm)
Gain(dB)
Max. output power(dBm)
NF(dB)
Specifications
Frequency 10MHz - 6GHz Noise figure  ≤ 5dB
Gain
10MHz - 1GHz: ≥ 40dB
1GHz - 6GHz: ≥ 30dB
1dB compression
10MHz - 1GHz: ≤ -28dBm
1GHz - 6GHz: ≤ -18dBm
Max. output power  ≥ 8dBm SWR
10MHz - 1GHz: ≤ 2
1GHz - 6GHz: ≤ 3
Input level+13dBm (max) ImpedanceSMA Female 50Ω
Power supply15V - 22V DC ≤ 110mA DimensionsW100mm × D300mm × H90mm
WeightApprox. 1kg Accessories Calibration data, AC adapter
Recommended probes ALMP001, AEMP002, CP-2S, MP-10LA
*Please see the probe specifications for details.

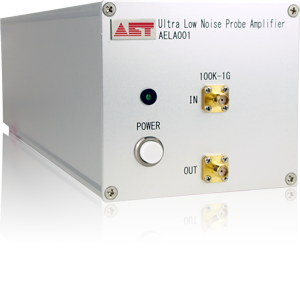

AELA001

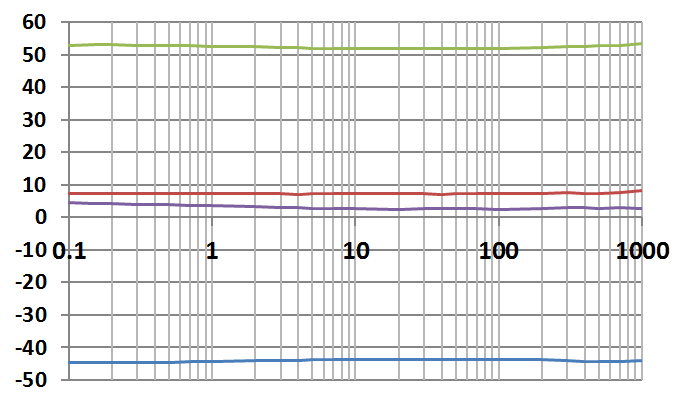

Typical performance at 25℃
1dB comp.(dBm)
Gain(dB)
Max. output power(dBm)
NF(dB)
Specifications
Frequency 100kHz - 1GHz Noise figure  ≤ 5dB
Gain  ≥ 50dB 1dB compression  ≤ -43dBm
Max. output power  ≥ 5.5dBm SWR  ≤ 2
Input level+5dBm (max) ImpedanceSMA Female 50Ω
Power supply17V - 22V DC ≤ 150mA DimensionsW100mm × D300mm × H90mm
WeightApprox. 1kg Accessories Calibration data, AC adapter
Recommended probes ALMP001, AEMP002, CP-2S, MP-10LA
*Please see the probe specifications for details.
